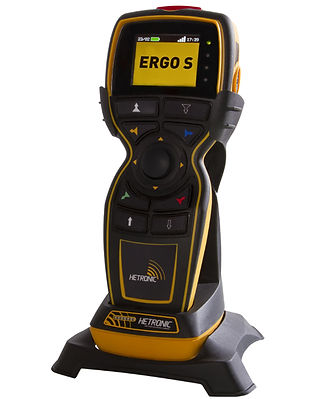

The new ERGO S brings the ergonomics of handheld transmitter to a new level with functional safety to meet the highest standard.

The ERGO S is equipped with up to 12 programmable buttons, a 2.4″ TFT screen and with a joystick control capable of operating in rugged environment with IP65 rating.

Tailor your ERGO S to meet various type of application requirements. It’s the perfect solution for skip loaders, hook lifts, trucks, side loaders, cranes, crushers and more. The Transmitter is also equipped with a belt clipping feature and also a magnetic function to facilitate the user to attach the Transmitter to the equipment when not in used.

The charging station is flexible for both wall mounted and desk mounted charging and is designed as a docking station for the Transmitter but also as a charging station for Stand Alone batteries.

Capable of operating on a number of Frequencies including 4XX Mhz, 8xxMhz, 9xx MHz or the 2.4 GHz the ERGO S is also customer programmable with the Hetronic H-Link PC system. The Transmitter is also equipped with the latest Hetronic designed firmware which offer top safety features thereby reducing the vulnerability of the customer systems to any external malicious cyber attacks.


ERGO S

TYPICAL APPLICATIONS
FEATURES
Weight: 450g (0.99lbs)
10+ hrs. Continuous operation
Joystick Control Capability
TFT Color Display 320X240 2.4″ Display
Capability of User programmable GUI
Range:- 100m (328 feet)
USB (Type A) interface with 4Gb memory key
Half or Full duplex transmission
Protected Firmware against known cyber attacks
