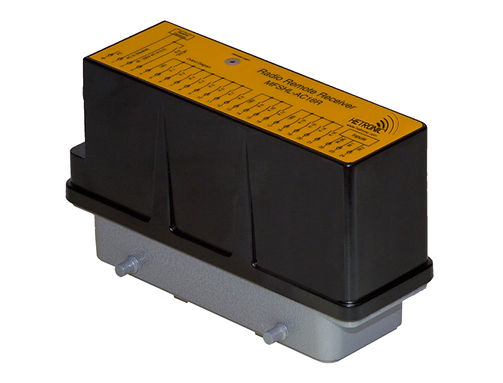

RX MFSHL AC16R

Compact and lightweight, the RX MFSHL AC16R offer the simplicity and convenience of quick connect/disconnect.

	RX MFSHL AC16R

Compact and lightweight, the RX MFSHL AC16R offer the simplicity and convenience of quick connect/disconnect. RX MFSHL AC16R comes in either 16 pol. or 24 pol. connector configurations. The RX MFSHL AC16R 16 pol. variant offers one (1) Main Contact relay, fifteen (15) switching relay digital outputs, while the RX MFSHL AC16R 24 pol. variant offers two (2) AC inputs in addition to the one (1) Main Contact relay, fifteen (15) switching relay digital outputs. Both variants offer Address Learn feature, built-in warning horn, LED diagnostics for power/operation, transmission signal reception, main contact and memory errors. Typical operating voltage range is 48VAC – 230VAC.
